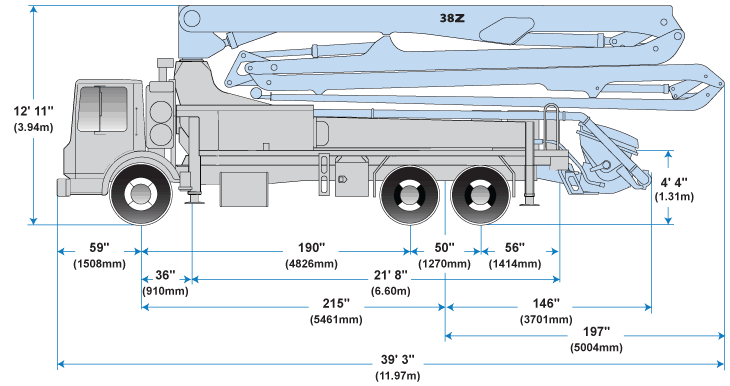

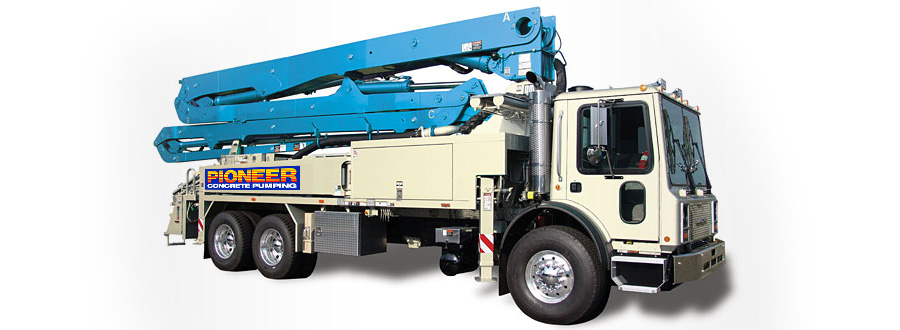

38-specs

Boom Specifications – Mutli-Z Design

Height & Reach Feet Meters Degrees
Vertical reach 121’9″ 37.11m
Horizontal reach 108’7″ 33.10m
Reach from front of truck 101’1″ 30.81m
Reach depth 80’1″ 24.41m
Unfolding height 28’7″ 8.71m
4-Section Boom
1st section length & articulation 28’6″ 8.69m 103°
2nd section length & articulation 25’3″ 7.70m 180°
3rd section length & articulation 27’7″ 8.41m 245°
4th section length & articulation 27’3″ 8.31m 233°
General Specs
Outrigger spread L-R-front hydraulically extend out & down 20’7″ 6.27m
Outrigger spread L-R-rear hydraulically swing & extend down 21’8″ 6.6m

Pump Specifications

38Z.12L 38Z.16H
Output – rod side 144 yd³/hr (110m³/hr) 209 yd³/hr (160m³/hr)
Output – piston side 97 yd³/hr (74m³/hr) 141 yd³/hr (108m³/hr)
Pressure – rod side 1189 psi (82 bar) 1189 psi (82 bar)
Pressure – piston side 1624 psi (122 bar) 1885 psi (122 bar)
Concrete cylinder diameter 9″ (230mm) 9″ (230mm)
Stroke length 83″ (2100mm) 83″ (2100mm)
Max strokes per minute rod side 21 31
Max strokes per minute piston side 14 21

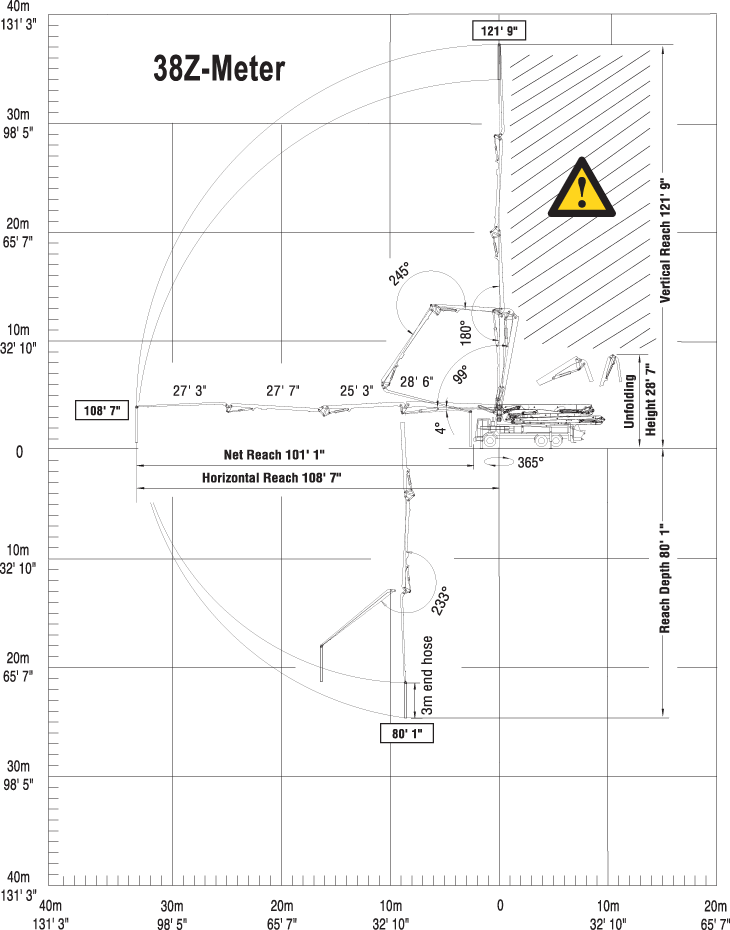

Range_diagram_38Z_BIG1

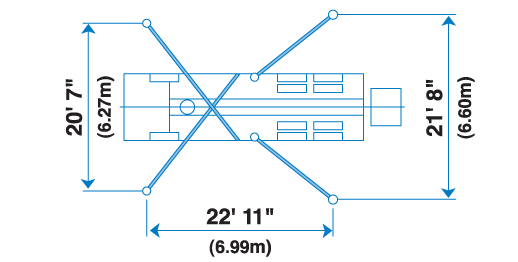

outrigger_spread_38Z
